Aim 37-Pin Deutsch Harness with 2 Thermocouples For MX Series
Aim 37 Pin Deutsch Harness with 2 Thermocouples MXS, MXP, MXG, MXL2, MXm
The Aim 37 pin Deutsch harness with two thermocouple connectors to connect K-Line type sensors.
Key Features :
| Suitable for MXS, MXP, MXG MXL2 & MXm | Digital output |
| Ā 37 pin harness | Two thermocouple connectors |

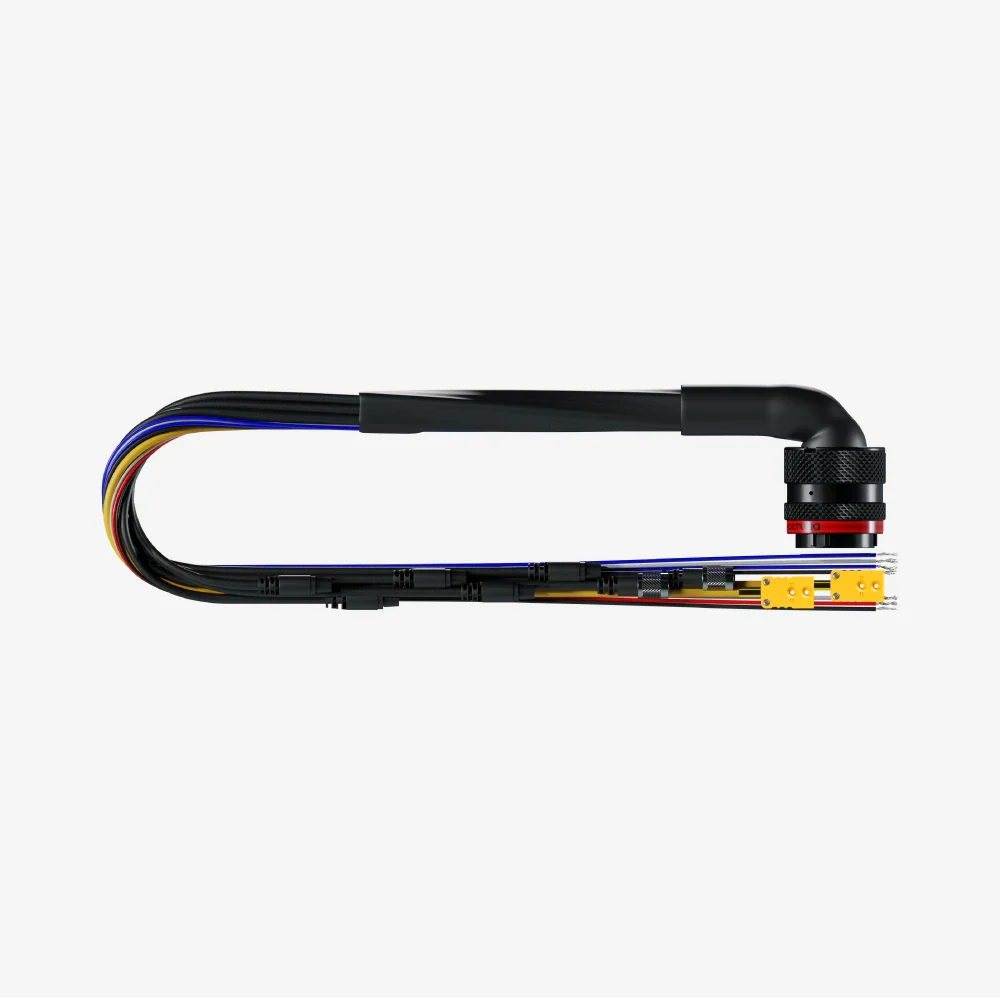

37 pin Harness with Two Thermocouple Connectors for the MX Series
The Aim 37 pins harness has been designed with two thermocouple connectors, this will enable you to connect two different thermocouple sensors to your device.
Thermocouple sensors available are Exhaust Gas Temperature Sensor, Water/Oil M5 Sensor, Water/Oil M10 Sensor, and many more depending on the application.
This harness can be used to replace a damaged harness or for a second vehicle installation when sharing a dash logger.Ā
The Aim 37 pins Deutsch harness functions are listed below:
Analogue sensor channels (sensors) 1, 2, 3, 4
Digital wheel speed channel 1
Optical lap timing sensor output
CAN expansion
Power+
Ground-
CAN ECU connection
K-Line connection
Please Note:Ā If you wish to add extra race data then you will need the 22 pin Deutsch harness. This will add four more analogue channels (sensors). Available in the Accessories Tab.
Also available is our 37 pins Deutsch harness with a thermocouple connector. These are available with one or two thermocouple connectors and will enable you to connect thermocouple sensors.
Expand Your System
These are some of the items that can be added to your car or motorcycle for incrementing performance and data.
 |
 |
 |
Technical
Aim 37 Pin Deutsch Harness with 2 Thermocouples for MXS, MXP, MXG, MXL2 & MXm

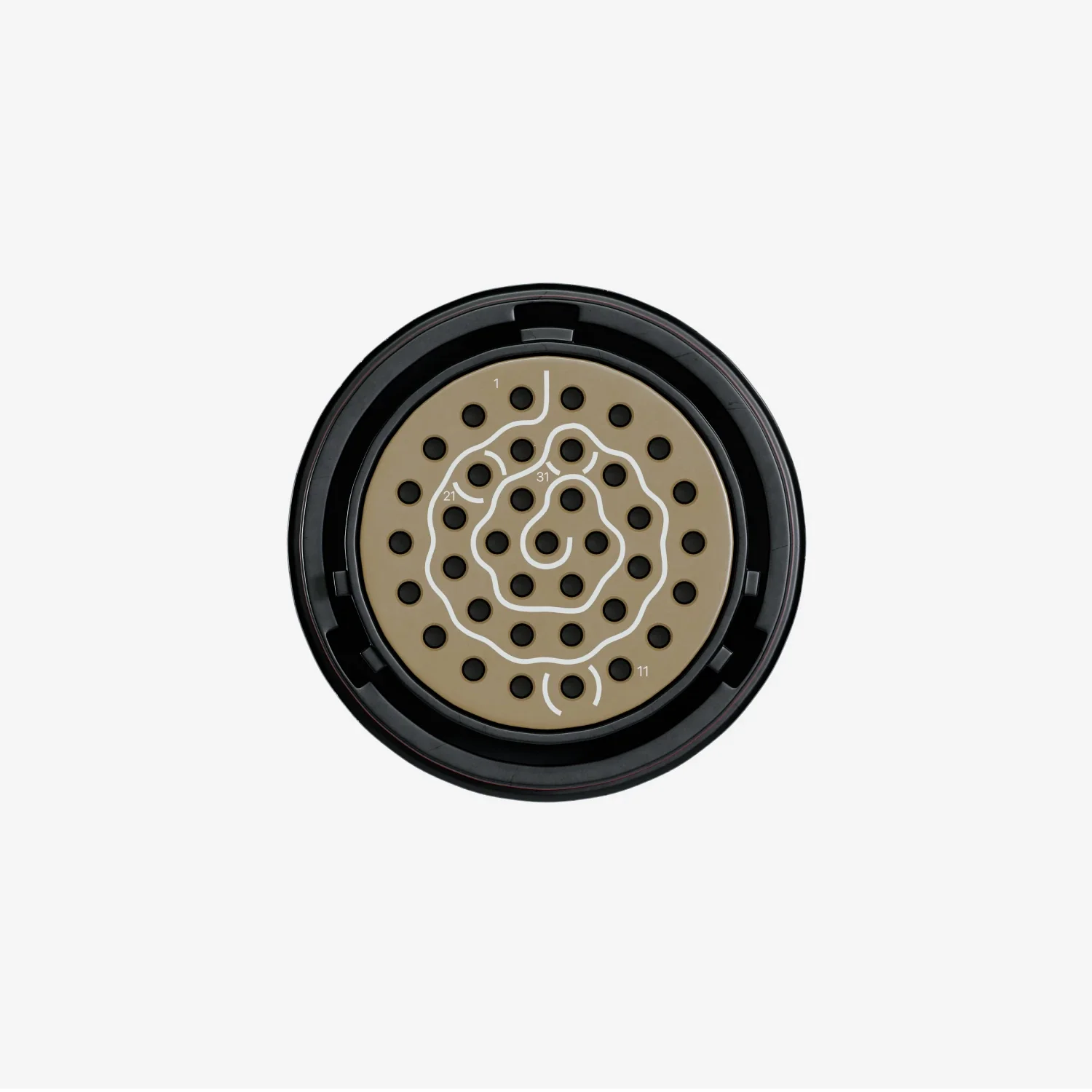

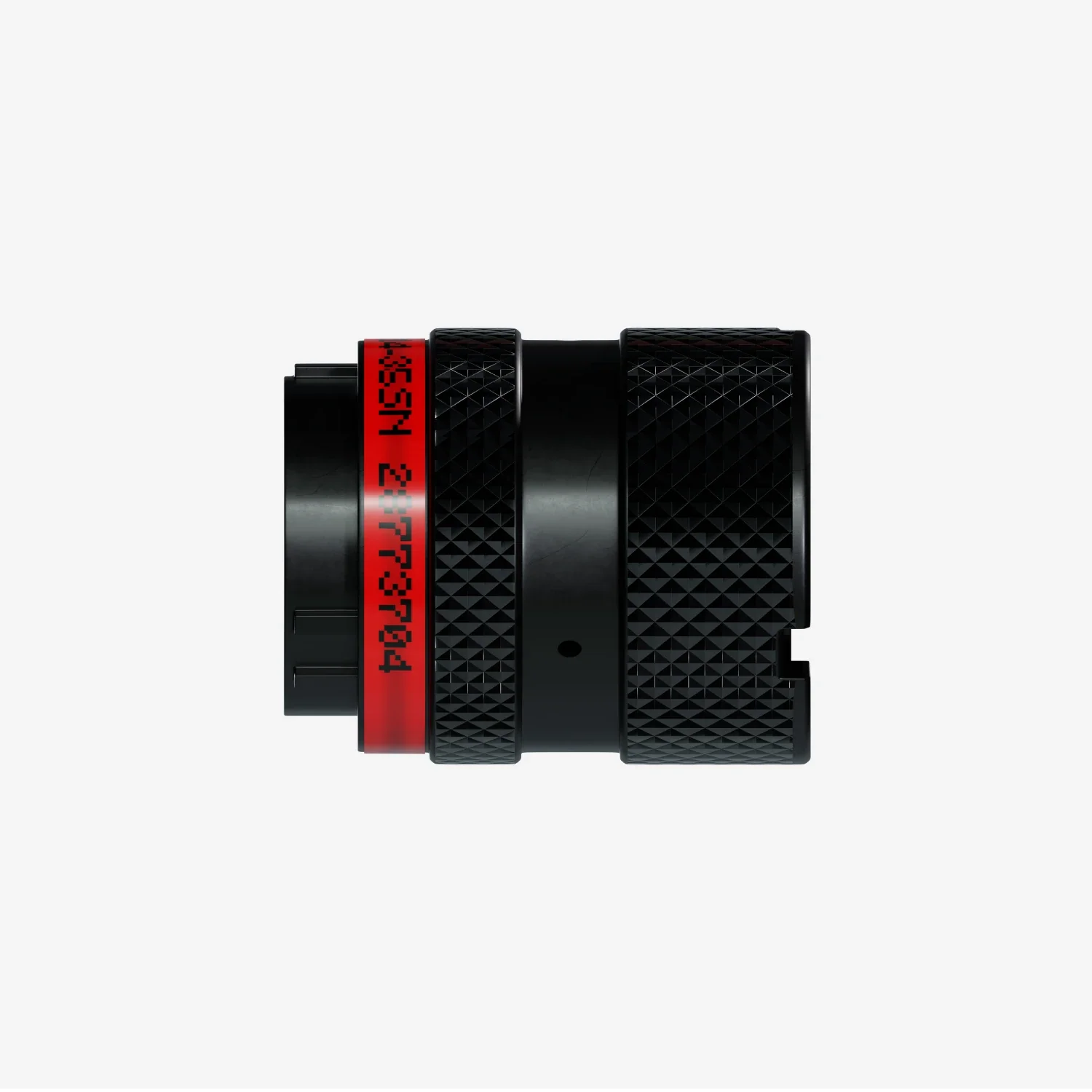

- 37 pin Deutsch Female Flying Connector
- 4 pins Binder 719 Female connector - See table in Downloads Tab
- 5 pins Binder 712 Female Connector - See table in Downloads Tab
- 7 none ended cables - See table in Downloads Tab
- Two Thermocouple Connectors - See table in Downloads Tab
Ā
What's in The Box
Aim 37 Pin Deutsch Harness with 2 Thermocouples for MXS, MXP, MXG, MXL2 & MXm
- 37 pin Deutsch Harness with Two Thermocouple Connectors
Downloads
|
|
 |
 |
|
| Technical sheet | Race Studio 3 |
